Useful

Trifluoromethane, also known as HFC-23, is a high-pressure liquefied vapor that can be used as a refrigerant to replace CFC-13 (R13). At the same time, it is an ideal substitute for halon 1301, which has the characteristics of clean, low toxicity and good effect of fire extinguishing agent.

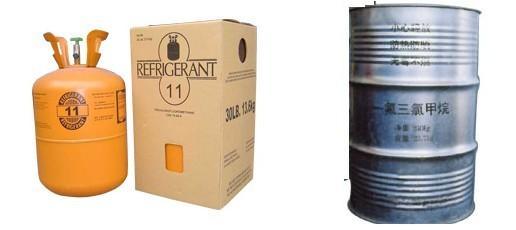

Packaging

High pressure cylinder packaging: 30kg/ bottle, 380kg/ bottle, can also provide different packaging according to user requirements. Dangerous goods category, 2.2 Ⅱ packaging category. Imported DuPont Freon23 (R23) refrigerant packaging: 9.08kg/ bottle, to recycle the packaging cylinder.

Safety matters

The packing cylinder of this product is a pressure container, which should avoid collision and falling during transportation. Avoid direct exposure and keep away from heat during storage.

Note: Compressor manufacturers usually recommend the use of POE (Polyol Ester) refrigerating oil.

Physical properties

The molecular weight of 70.0

Boiling point (atmospheric pressure),℃ -82.1

Freezing point,℃ -155.2

Liquid density (25℃),kg/L 0.67

Saturated vapor density (at boiling point), kg/m3 4.66

Saturated vapor pressure (25℃),MPa 4.73

The critical temperature is 25.9 ℃

Critical pressure, MPa 4.83

Critical density, kg/L 0.525

Latent heat of evaporation (at boiling point), kJ /kg 239.5

Thermal conductivity (25℃), liquid, W/(m.K) 0.14

Vapor, W/(m.k) 0.0012

The specific heat capacity of liquid,(25℃), kJ /(kg. K) 6.5

Vapor specific heat capacity,(atmospheric pressure, 25℃), kJ /(kg.K) 0.736

Solubility in water (atmospheric pressure, 25℃),%(mass) 0.10

Ozone Depleting Potential (ODP) 0

Global Warming Potential (GWP) 5.7
