In order to improve work efficiency and safety production, the single gas supply source of a single gas point is concentrated together, and multiple gas containing containers (high pressure cylinder, low temperature dewy can, etc.) are gathered together to realize the centralized gas supply device

Advantages of using bus bars:

1, the use of bus bar can save the number of cylinder change, reduce the labor intensity of workers and save labor costs.

2, let the high-pressure gas centralized management, can reduce the existence of safety risks.

3, can save the site space, better reasonable use of the site space.

4, easy to gas management.

Gas busbar is suitable for large gas consumption enterprises, its principle is the bottled gas through the clamp and hose input to the busbar main pipeline, decompression, regulation, through the pipeline to the use of the site, it is widely used in hospitals, chemical, welding, electronics and scientific research units.

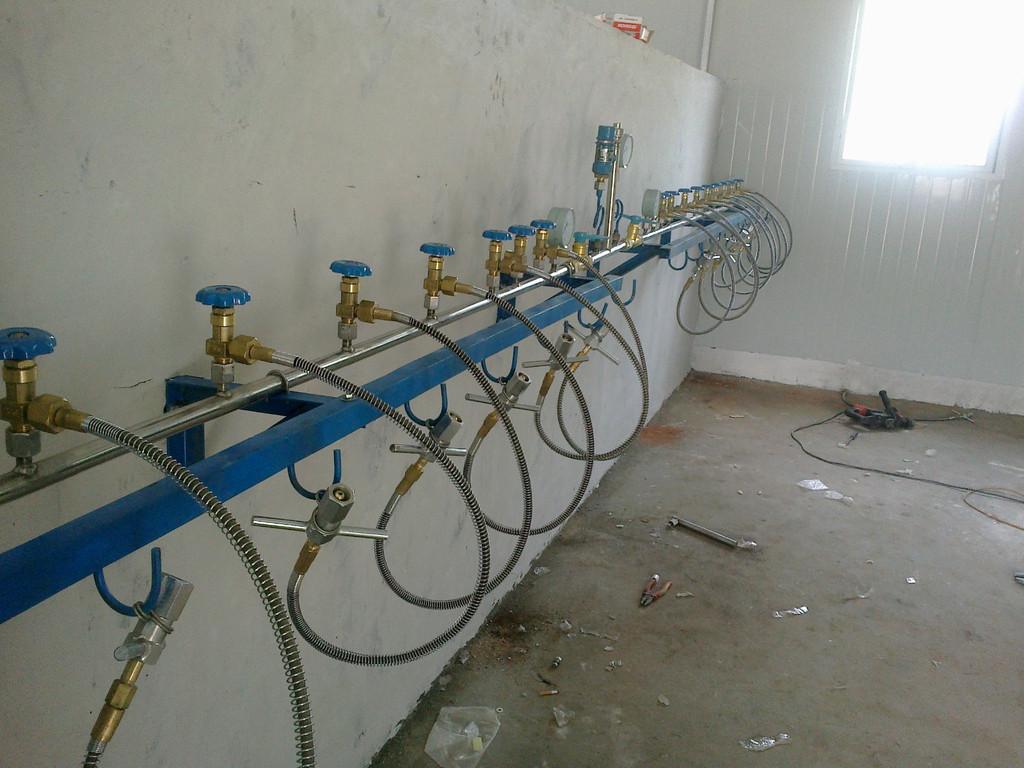

Argon busbar

Basic performance of gas bus

Bus bar: refers to the bottle of high pressure gas, through this equipment to reduce pressure to a certain use pressure, is a centralized gas supply equipment. Bus-bar around by the convergence of two main components, there are four among high pressure valves, were about to control the convergence of two groups of tube, there are a number of points in each group valve, hose and fixture connected cylinders, equipped with a high pressure in the middle table, used to detect the flow tube, the pressure of high pressure valve above two groups respectively pressure reducer, in order to control the use of pressure and flow rate, pressure reducer respectively has two above the low pressure valve, used to control the convergence of two rows when switching low pressure gas, flow low pressure pipe is equipped with a low pressure valves, always used to control the low pressure gas pipeline.

Gas busbar is a centralized charging or gas supply device, it is a plurality of cylinder gas through the valve, pipe connected to the busbar, so that these cylinders are inflated at the same time; Or the special equipment transported to the place of use by pipeline after decompression and pressure stabilization, so as to ensure that the air source pressure of the gas appliance is stable and adjustable, and to achieve the purpose of uninterrupted gas supply.
