Co2 tank, cryogenic liquid carbon dioxide storage tank, the structure of the internal and external container consisting of double container, vacuum powder adiabatic type, may be long and horizontal, inner container material selected 16 MNDR, outer container material can be chosen according to different user area of Q235 - B or 16 MNR, internal and external container sandwich filling and vacuum perlite insulation materials. (Divided into vertical and horizontal)

Adiabatic performance

The thermal insulation material is pearlite sand filling sandwich and vacuuming. The vacuum degree after sandwich sealing is as follows:

Effective volume: less than or equal to 10m 3 vacuum ≤ 2Pa, greater than 10m 3 vacuum ≤ 3Pa, greater than 50m 3 vacuum ≤ 5Pa, exquisite technology, unique filling process, quality assurance commitment, in order to achieve the best insulation effect.

Safety technical characteristics

Cryogen-liquid CARBON dioxide storage tank adopts "combination and safety system valve" and uses two groups of safety valves to work simultaneously. When the safety valve is checked regularly, one side can be closed and the other side can continue to work to ensure the safe operation of the storage tank.

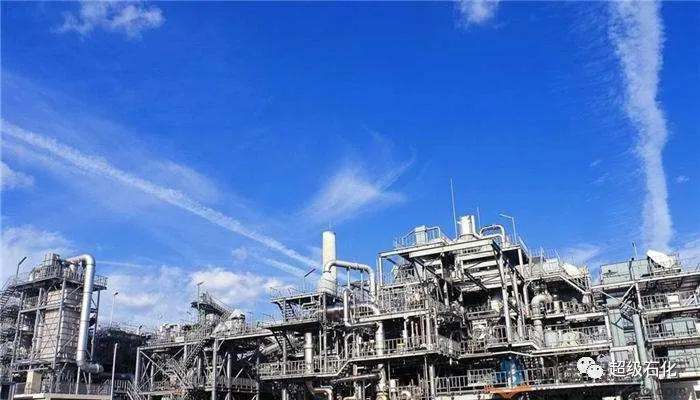

Carbon dioxide production

The operating system

The pressure gauge, differential pressure level gauge and liquid level comparison table are arranged on the upper part of the container inside the tank, which can grasp the storage quantity and pressure change of the container at any time and facilitate the operation of filling and discharging liquid.

Detection system

The lower part of the storage tank is equipped with a special tank vacuum test, vacuum gauge and vacuum valve. The sandwich vacuum can be tested regularly or at any time with a vacuum gauge to ensure the safe operation of the storage tank.

Technical parameters

Operating temperature: -20 ℃

Effective containers: 5m3, 10m3, 15m3, 20m3, 30m3, 50m3
